Description
This article was made in compliance with the quality management requirements of standard ISO 9001:2008.
All articles are tested according to the standard EN 12266-1:2003.
It can be used in water systems, for industrial and agricultural applications and generally with any non corrosive liquid.
It is guaranteed for 5 years.
It is made of a brass alloy that complies with standard EN 12165-CW617N-M.
Chrome Plated, 150psi/400#wog
Nominal Pressure: PN 16
Operating temperature: -15 to 90°C

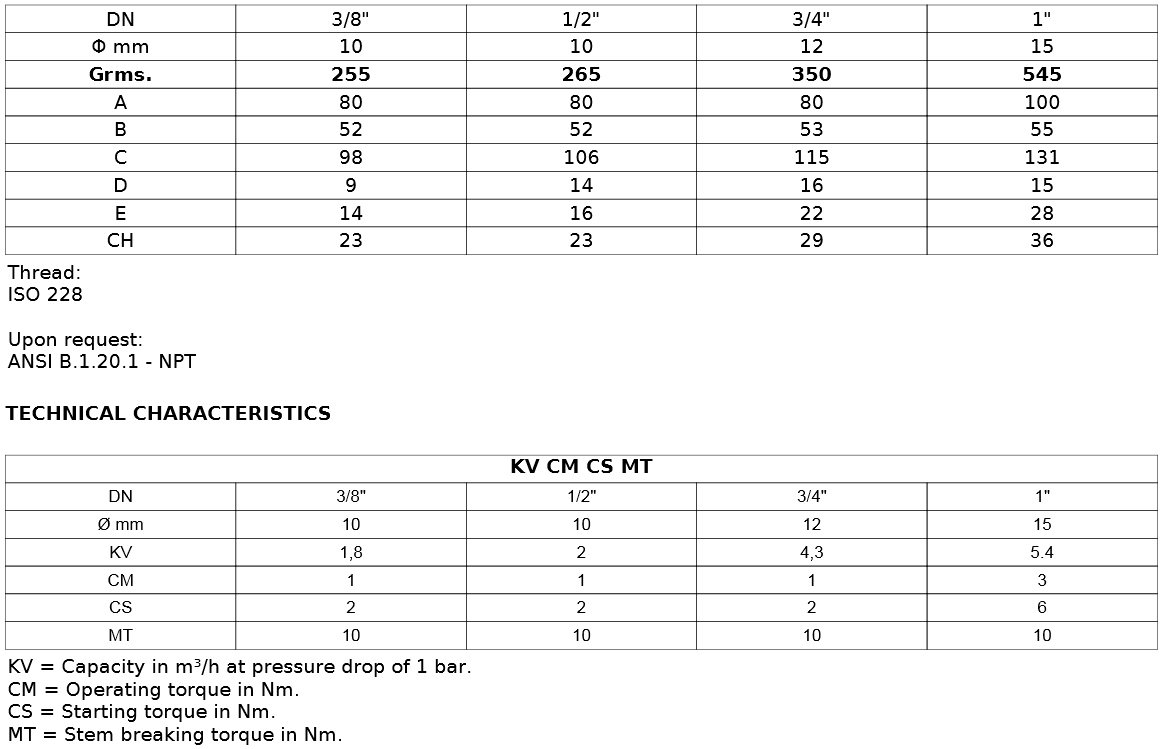

Technical Drawing
