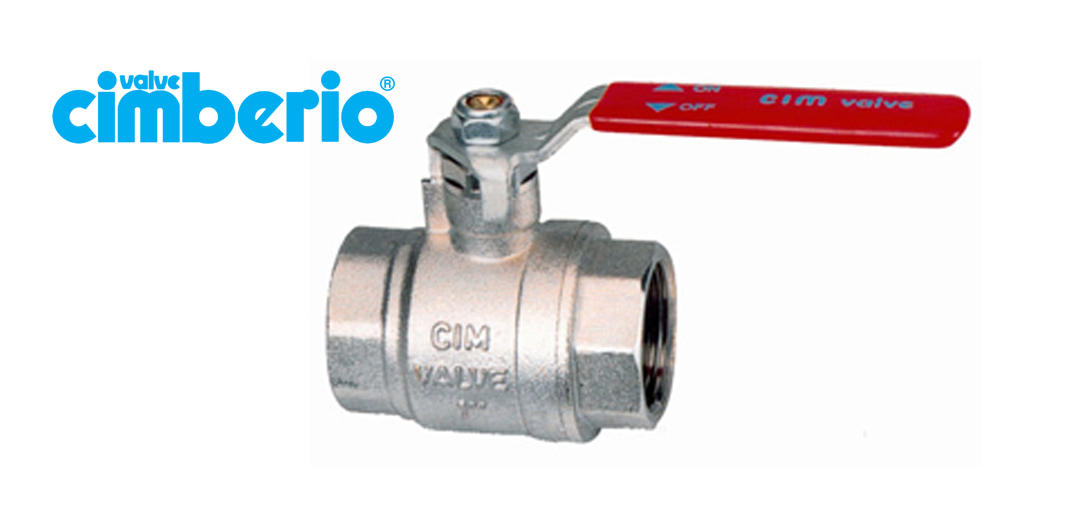

Description
This article was made in compliance with the quality management requirements of standard ISO 9001:2008.
All articles are tested according to the standard EN 12266-1:2003.
It can be used in a wide variety of sectors: heating, air conditioning, water, sanitary systems, pneumatic systems, oil
pipelines, gasoline networks, saturated steam and generally with any non corrosive liquid.
It is guaranteed for 5 years.
It is made of a brass alloy that complies with standard EN 12165-CW617N-M.

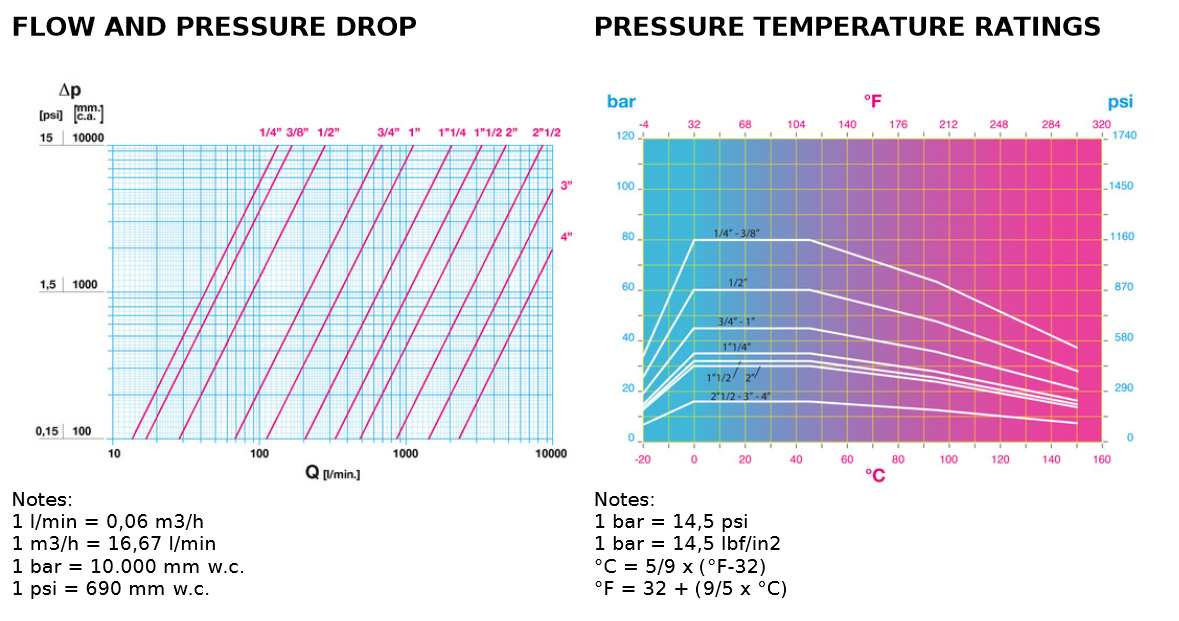

Nominal Pressure:
PN 80 (1/4″ ÷ 3/8″); PN 60 (1/2″); PN 45 (3/4″ ÷ 1″); PN 35 (1″1/4); PN 32 (1″1/2); PN 30 (2″); PN16 (2″1/2 ÷ 4″)
Operating temperature: -20 ÷ 150°C

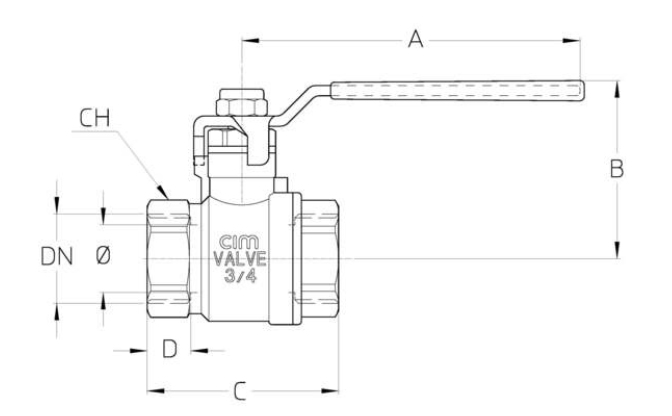

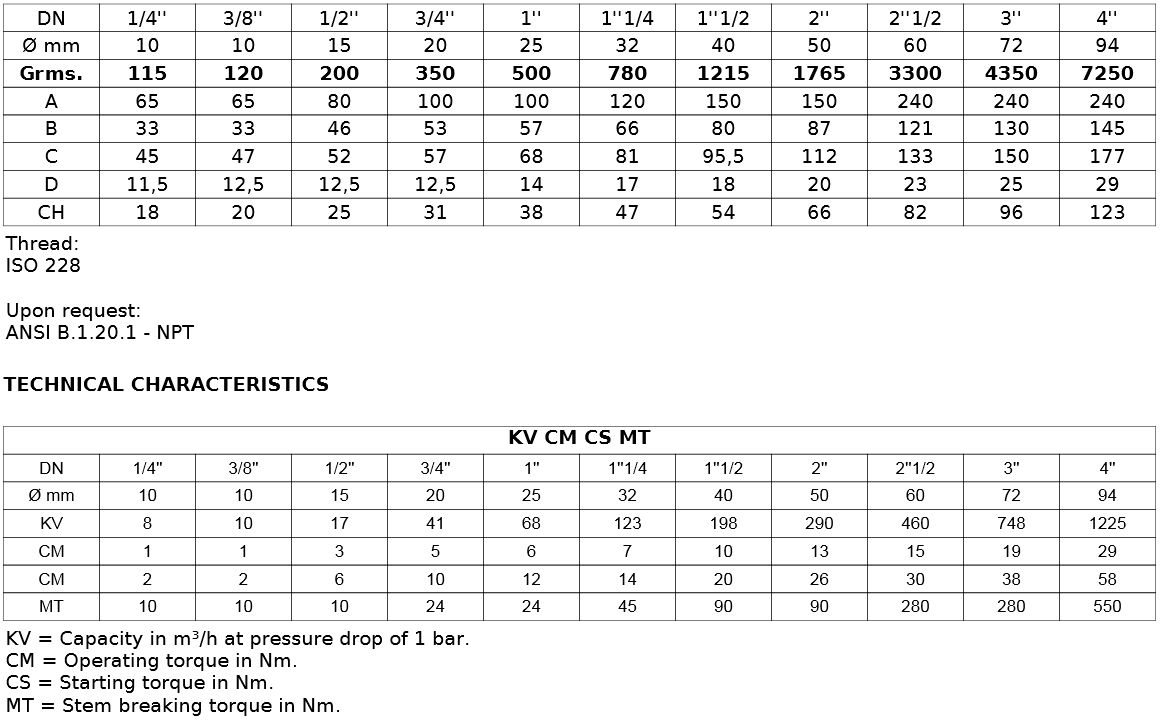

Technical Drawing
